InventraX

Inventory & Asset Management Platform
Built by Alejandro X. Solis — TechFusion Repairs LLC

Overview

InventraX is a desktop application for tracking inventory and physical assets.
It runs fully offline, stores all data in a local SQLite database, and exports to Excel, CSV, and PDF.

Quick Start

1 — Install Python

Requires Python 3.10 or newer.
Download from python.org.

2 — Install dependencies

pip install -r requirements.txt

For camera-based barcode scanning, also install the system library:

• Linux: sudo apt install libzbar0
• macOS: brew install zbar
• Windows: no extra step needed

3 — Run the app

python Main.py

Project Structure

INVENTRAX/ │ ├── Main.py                  # Entry point — run this to start the app │ ├── config/ │   ├── settings.py          # All paths, constants, and defaults │   └── user_prefs.json      # Auto-generated — saves your theme & settings │ ├── core/ │   ├── inventory.py         # SQLite CRUD for inventory items │   ├── asset_manager.py     # SQLite CRUD for assets + history + maintenance │   ├── barcode_tools.py     # QR generation + scanner dialog (USB & camera) │   ├── reporting.py         # All report builders and export functions │   ├── prefs.py             # User preference load/save/apply │   └── backup.py            # Database backup, restore, and rotation │ ├── ui/ │   ├── main_window.py       # Main application window (all 4 tabs) │   └── item_editor.py       # Full detail/edit dialog (double-click a row) │ ├── data/ │   └── inventrax.db         # SQLite database (auto-created on first run) │ ├── logs/ │   └── inventrax.log        # Rotating log file (5 MB × 3 files) │ ├── backups/                 # Auto-backups created on app close ├── reports/                 # Exported reports (Excel, CSV, PDF) ├── barcodes/                # Generated QR code images └── assets/     └── icons/               # App logo and icons

Features

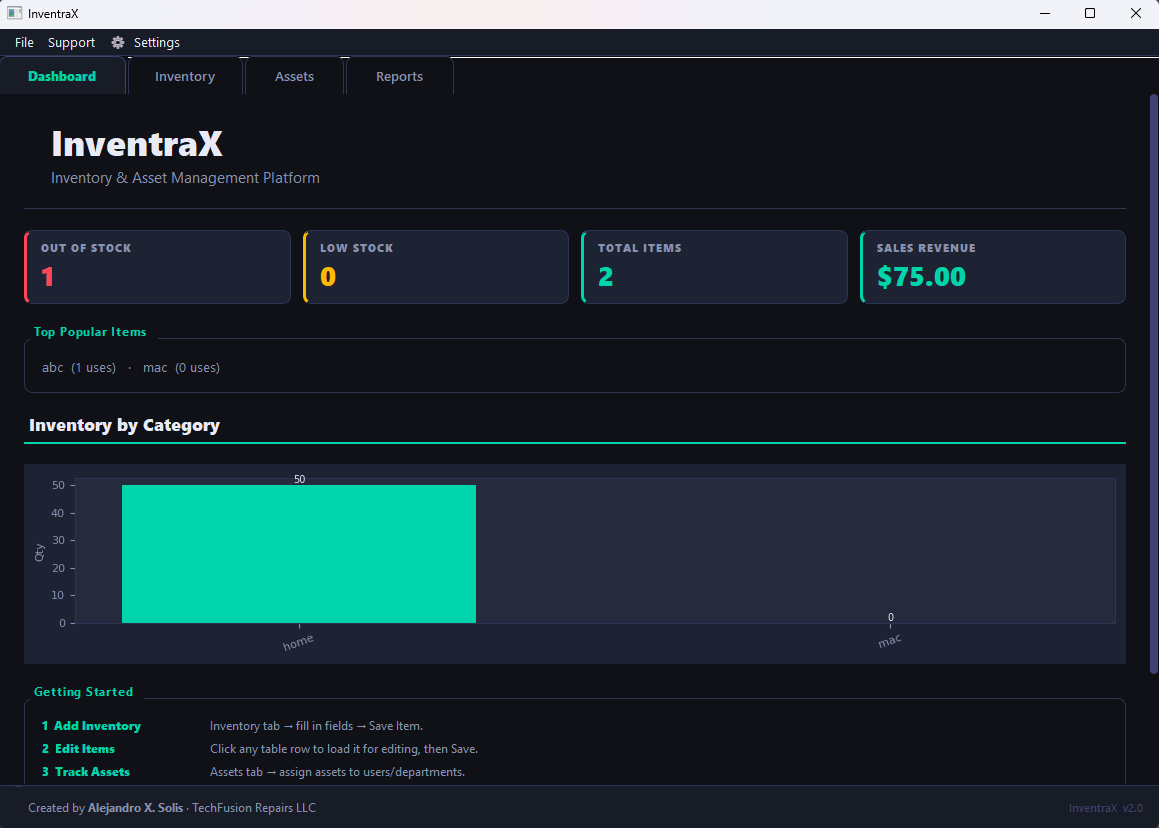

Dashboard

• Live stat cards: Out of Stock, Low Stock, Total Items, Sales Revenue
• Live bar chart showing inventory quantity by category — updates automatically
• Popular items list (by usage count)
• Getting Started guide

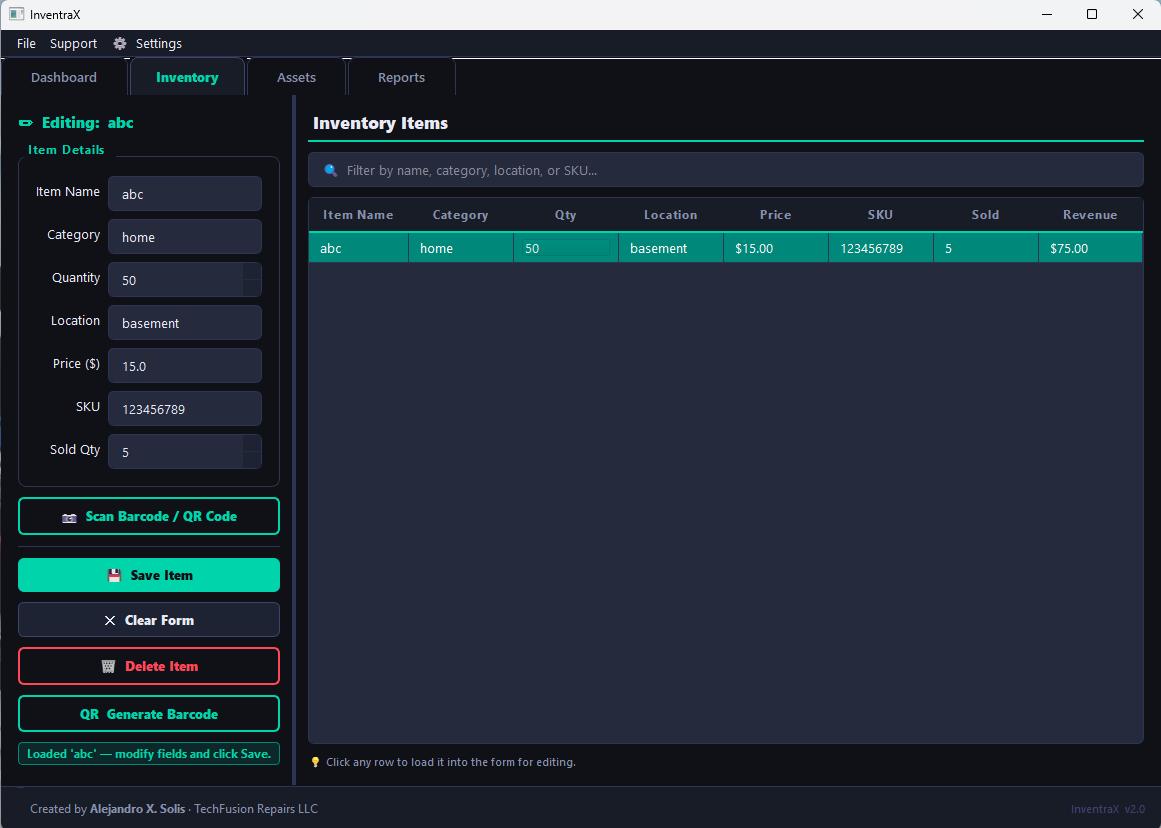

Inventory Tab

• Add, edit, and delete inventory items
• Click any row to load it into the edit form
• Double-click any row to open the full detail editor (all fields including serial number, warranty date, and notes)
• Search / filter in real time
• Sortable columns
• Color-coded rows: red = out of stock, amber = low stock
• Scan a barcode or QR code to look up an item instantly
• Generate and preview QR codes for any item

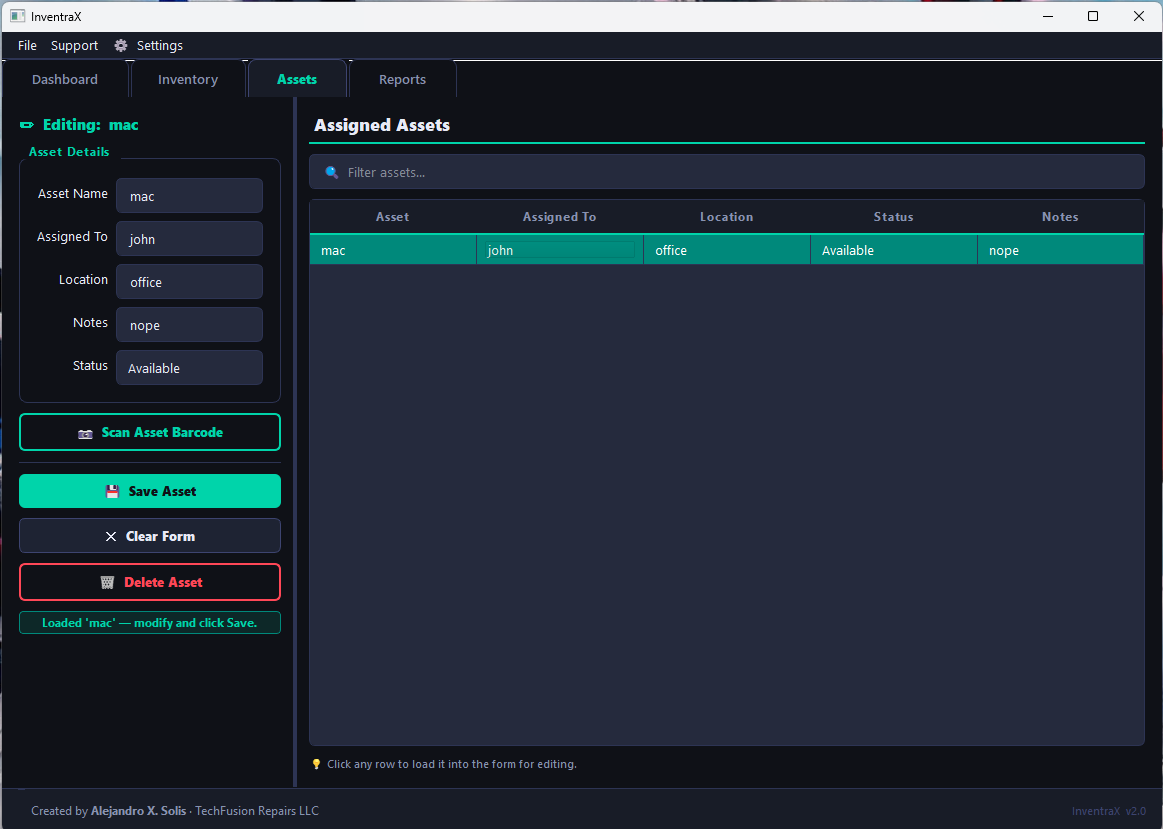

Assets Tab

• Assign assets to people and departments
• Track status: Active, In Repair, Available, Reserved, Retired, Lost, Disposed
• Click any row to load and edit
• Scan asset barcodes to look up records
• Transfer and return workflow (via asset_manager.py)
• Full assignment history and maintenance log

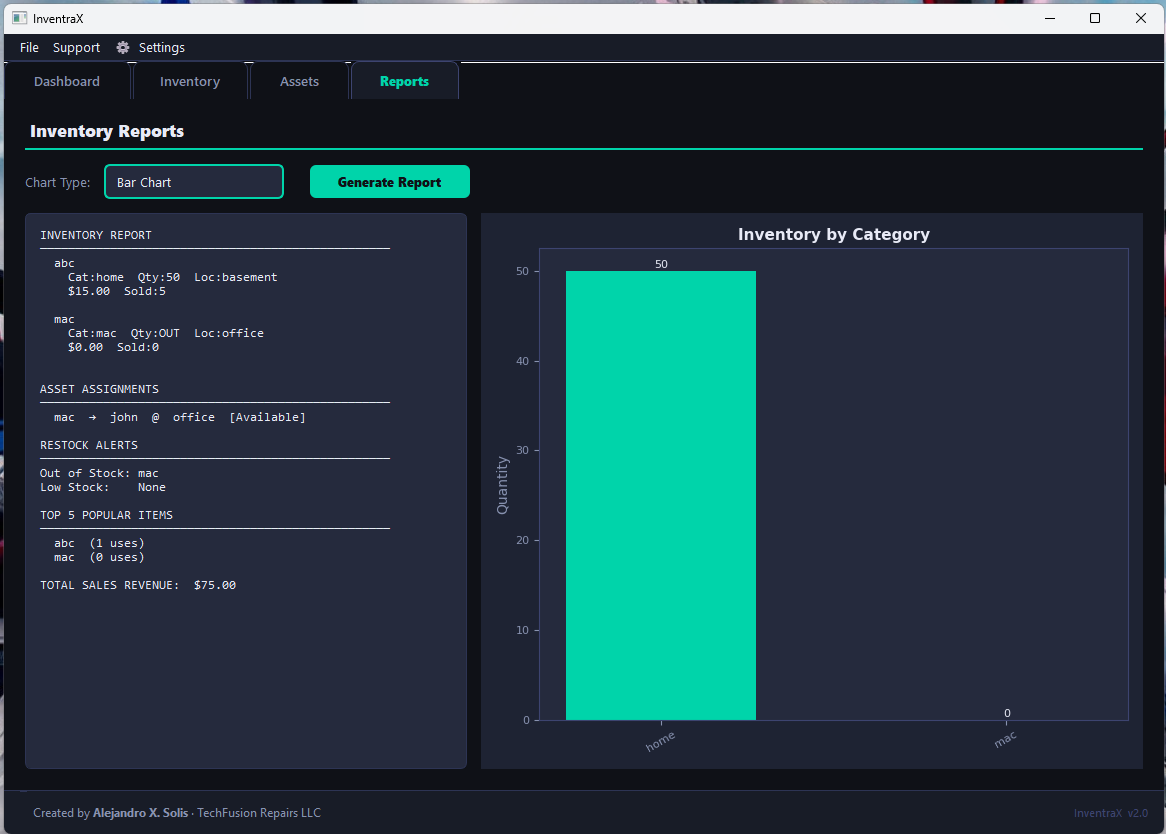

Reports Tab

• Text report with full inventory and asset summary
• Bar, pie, and line charts
• Export to Excel (multi-sheet workbook), CSV, or PDF

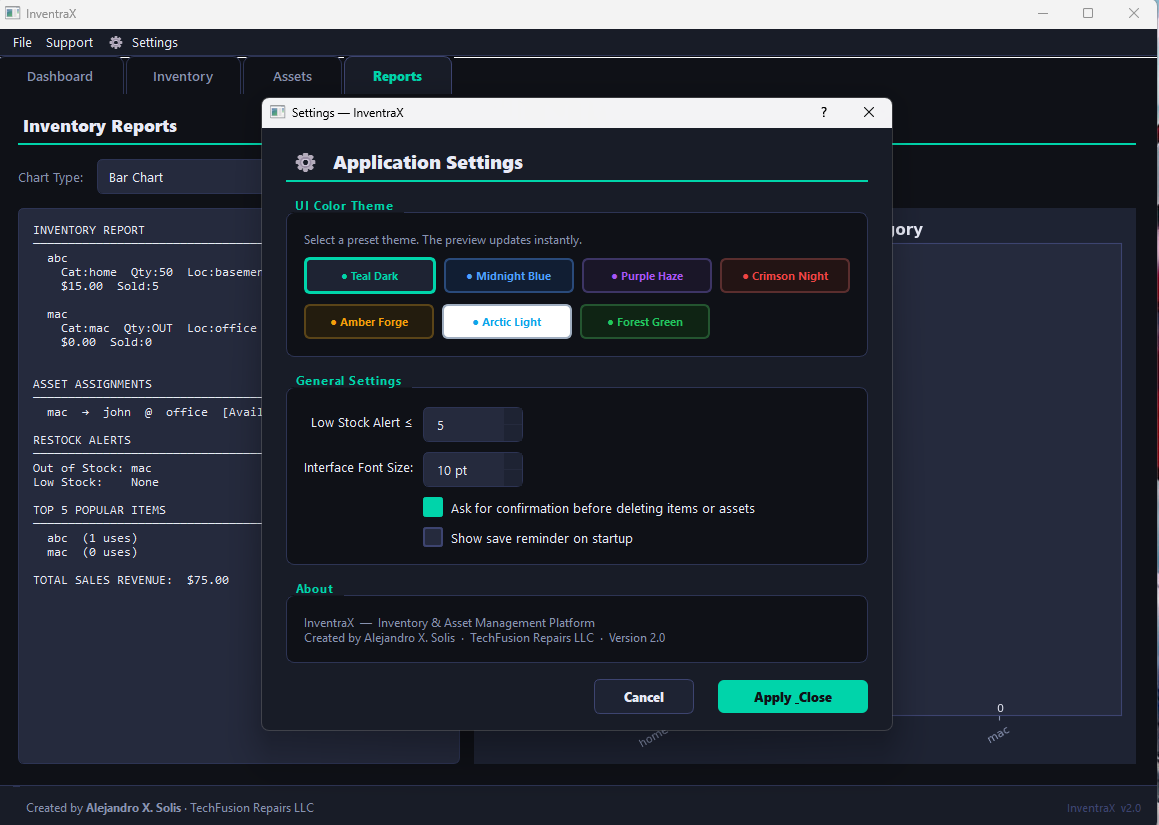

Settings

• 7 built-in color themes with live preview
• Adjustable font size (8–16 pt)
• Configurable low-stock threshold
• Confirm-on-delete toggle
• All settings persist between sessions

Keyboard Shortcuts

Shortcut	Action
Ctrl+S	Save current item / asset (or save all to DB)
Ctrl+N	Clear form / start new item or asset
Ctrl+F	Focus the search bar on the current tab
Ctrl+P	Switch to Reports tab and generate report
Ctrl+E	Export inventory to Excel
Ctrl+D	Go to Dashboard
Ctrl+1	Switch to Dashboard tab
Ctrl+2	Switch to Inventory tab
Ctrl+3	Switch to Assets tab
Ctrl+4	Switch to Reports tab
Ctrl+,	Open Settings
F5	Refresh all tables and dashboard

Data Persistence

• All inventory and asset data is saved to data/inventrax.db automatically when the app closes
• Data is loaded back into memory automatically on startup
• A timestamped backup of the database is created in backups/ on every clean close
• The last 10 backups are kept automatically (oldest are deleted)
• User preferences (theme, font size, etc.) are saved to config/user_prefs.json

Exporting Data

From the UI

• File → Download Inventory File — exports inventory to Excel
• Reports tab → Generate Report — builds text report + chart
• Double-clicking a chart type and clicking Export PNG saves the chart

From code

from core.reporting import generate_auto_report from ui.main_window import inventory_data, asset_data  # Export everything (Excel workbook + CSV + PDF) to the reports/ folder paths = generate_auto_report(inventory_data, asset_data, fmt="all")

Barcode / QR Scanning

USB / Bluetooth Scanner

Plug in any standard HID keyboard-wedge barcode scanner.
Click 📷 Scan Barcode / QR Code in the Inventory or Assets tab — the scanner dialog opens, focus the USB Scanner tab, and pull the trigger. No drivers needed.

Camera Scanner

Requires opencv-python and pyzbar to be installed (see Quick Start).
Click 📷 Scan Barcode / QR Code, switch to the Camera tab, click Start Camera, and point your webcam at the code.

Generating QR Codes

Select an item in the Inventory tab and click QR Generate Barcode.
The QR code is saved to barcodes/<item_name>_barcode.png and a preview is shown.

Backup & Restore

Backups are created automatically in backups/ on every clean close.
To restore manually:

from core.backup import restore_database, list_backups  # See what backups exist for b in list_backups():     print(b["filename"], b["size_kb"], "KB", b["created_at"])  # Restore (automatically safety-backs-up the current DB first) restore_database("backups/inventrax_20240615_143022.db")

Logs

All errors and info messages are written to logs/inventrax.log.
The file rotates at 5 MB and keeps the last 3 files.
If the app crashes silently, check this file first.

Dependencies

Package	Purpose
PyQt5	Desktop UI framework
pandas	Data manipulation and Excel I/O
openpyxl	Excel file engine
matplotlib	Charts and graph export
qrcode + Pillow	QR code generation
opencv-python	Camera barcode scanning (optional)
pyzbar	Barcode decoding (optional)
reportlab	PDF report export (optional)

Support

• Email: TechFusionRepairs@gmail.com
• Website: https://alejandroxsolis93.wixsite.com/techfusionrepairsllc
• GitHub: https://github.com/TechFusionRepairsLLC
• Donate: https://www.paypal.com/donate/?hosted_button_id=CESA5GQALY386

InventraX v2.0.0 — © TechFusion Repairs LLC
